Example 8: Beam under uniform and large axial load (P-Δ effect) using 3D Frame Analysis Library

Example 8: Beam under uniform and large axial load (P-Δ effect) using 3D Frame Analysis Library

In this example, we will call the 3D Frame Library from a Visual Studio project and carry out the structural analysis of a simple beam under uniform load and large compressive force in order to get its P-Δ effect. We will first provide the geometry, material properties and loads and afterwards call the corresponding routine in order to obtain the results.

second order effect on a beam using 3D Frame Analysis Library for structural analysis

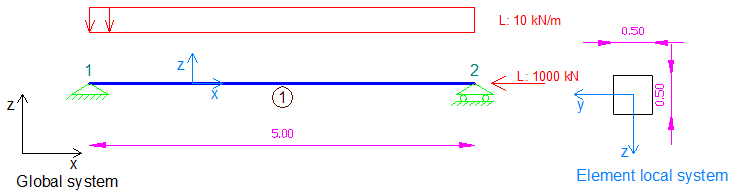

Sample beam under large compressive load analyze with 3D Frame Library (Metric units)

We will first create a new C# Windows Application project from Visual Studio and follow the following steps to carry out the structural analysis according the data provided. Please notice that we could use any other .NET compatible language and take the corresponding steps. The source code of all examples can be downloaded here.

Add a reference to 3D Frame Library

A reference to Frame 3D Library can easily be added by right clicking on the application project and selecting Add --> Reference.

Providing the data to 3D Frame Library using C#

New model definition

Model Model = new Model();
Model.LicenseInfo = LicenseInfo;

Definition of materials

//Create a new material for concrete
Material matConcrete = new Material();
matConcrete.Name = "Concrete";//Material name
matConcrete.Density = 2.5;//density in mass units/m3, for example tn/m3
matConcrete.G = 11538461;//shear modulus
matConcrete.E = 30000000;//elasticity modulus

Definition of cross section

//Create a new beam section of dimensions 50cmx50xm
FrameElementSection secBeam50_50 = new FrameElementSection();
secBeam50_50.Name = "Beam50/50";//section name
secBeam50_50.A = 0.5 * 0.5;//section area
secBeam50_50.Iy = 0.5 * 0.5 * 0.5 * 0.5 / 12;//inertia moment about local y axis
secBeam50_50.Iz = 0.5 * 0.5 * 0.5 * 0.5 / 12;//inertia moment about local z axis
secBeam50_50.It = 4.347e-3;//torsional constant
secBeam50_50.b = 0.5;//section height
secBeam50_50.h = 0.5;//section height

Definition of model geometry and static loads

//First node creation
Frame3D.SuperNode n1 = new Frame3D.SuperNode(1, 0, 0, 0);
//Application of supports (fixed conditions out of plane)
n1.dof1constraint = true;
n1.dof2constraint = true;
n1.dof3constraint = true;
n1.dof4constraint = true;
n1.dof5constraint = false;
n1.dof6constraint = true;
Model.InputNodes.Add(n1);

//Second node creation
Frame3D.SuperNode n2 = new Frame3D.SuperNode(2, 5, 0, 0);
//Application of supports (fixed conditions out of plane)
n2.dof1constraint = false;
n2.dof2constraint = true;
n2.dof3constraint = true;
n2.dof4constraint = true;
n2.dof5constraint = false;
n2.dof6constraint = true;
//Load case creation for horizontal load acting at right node
LinearLoadCaseForSuperNode L = new LinearLoadCaseForSuperNode("L", LoadCaseType.OTHER);
L.Px = -1000;
n2.LinearLoadCasesList.Add(L);
Model.InputNodes.Add(n2);

//Frame element creation
FrameSuperElement el1 = new FrameSuperElement(1, n1, n2, new Geometry.XYZ(0, 1, 0), matConcrete, secBeam50_50, new MemberReleases(), new MemberReleases(), false, false);
//Load case creation for uniform vertical load on frame element
LinearLoadCaseForSuperFrameElement load1 = new LinearLoadCaseForSuperFrameElement("L", LoadCaseType.OTHER);
load1.UniformLoad.UniformLoadsZ.Add(new FrameSuperUniformLoad(0, 1, -10, -10, LoadDefinitionFromStartingNode.Relatively, LoadCordinateSystem.Local));
el1.LinearLoadCasesList.Add(load1);
Model.InputFiniteElements.Add(el1);

Definition of geometric non linear case

//Creation of a geometric non linear case that includes all load cases defined as "L"
GeometricNonLinearCase NLcase = new GeometricNonLinearCase("NL");
//Analysis parameters:
NLcase.LoadSteps = 50;//50 load steps
NLcase.IterationsPerLoadStep = 30;//maximum 30 iteration per load step
NLcase.ConvergenceTolerance = 1e-12;//convergence tolerance in terms of force
//It will include the loads that have been defined as "L"
NLcase.InputLoadCombo = new LoadCombination("NLcase loads", ComboType.ADD);
NLcase.InputLoadCombo.Items.Add(new LoadCaseWithFactor("L", 1));
//Definition of stiffness matrix update mode
NLcase.UpdateStiffnessMethod = GeometricNonLinearCase.UpdateStiffnessMatrixMethod.AfterEachIterationInLoadStep;
NLcase.SaveResultsAtEachLoadStep = true;//Results will be saved at all intermediate load steps
Model.GeometricNonLinearCases.Add(NLcase);

Call the solution method

Model.Solve();

Obtain the analysis results

double[] Min, Max;
for (int loadStep = 1; loadStep <= NLcase.LoadSteps; loadStep++)
{
    //Get deflection at the middle of the beam at each load step
    el1.GetDisplacementsForLoadCase(2.5, "NL", out Min, out Max, loadStep);
    double Deflection = Min[2];

    //Get bending moment at the middle of the beam at each load step
    el1.GetInternalForcesForLoadCase(2.5, "NL", out Min, out Max, loadStep);
    double SpanMoment = Min[4];
}
